Sign Technical Services
Production floor

The machines behind every SignTechs installation

Everything is cut, formed, welded and finished inside our 1000 sq. yard Korangi facility — which keeps quality, lead times and cost firmly under our control.

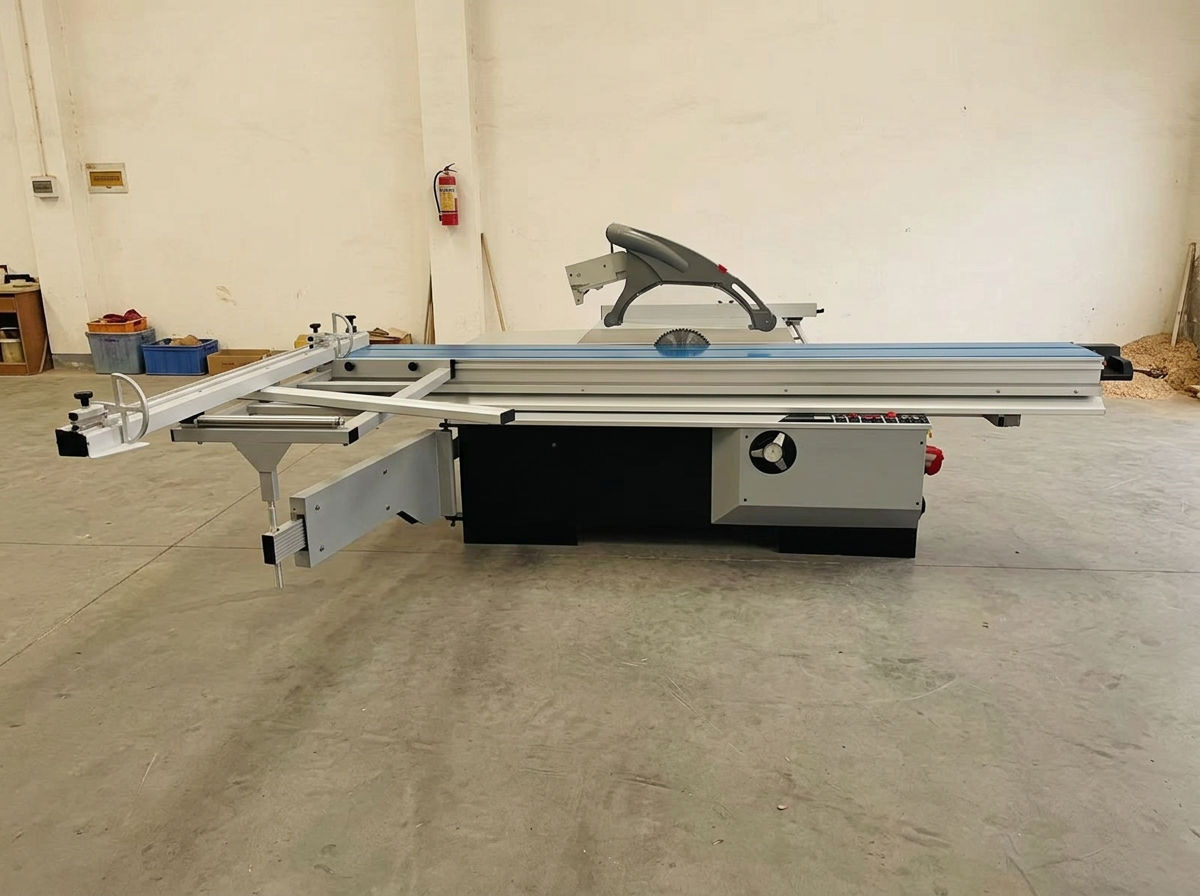

Sliding Saw Machine MJ92B01
In-house capability

Sliding Saw Machine MJ92B

Precision sliding table panel saw for clean, square cuts on MDF, plywood, laminates and acrylic sheets.

  • Chip-free, square cuts on laminated and acrylic panels
  • 3.2 m carriage handles full sheets with one operator
  • 0-45 degree tilt for bevel and mitre joinery
Motor: 5.5 HP / 4 kWBlade tilt: 0-45 degreesMain blade: 305 mm with scoring bladeSliding table: 3200 mm
View details

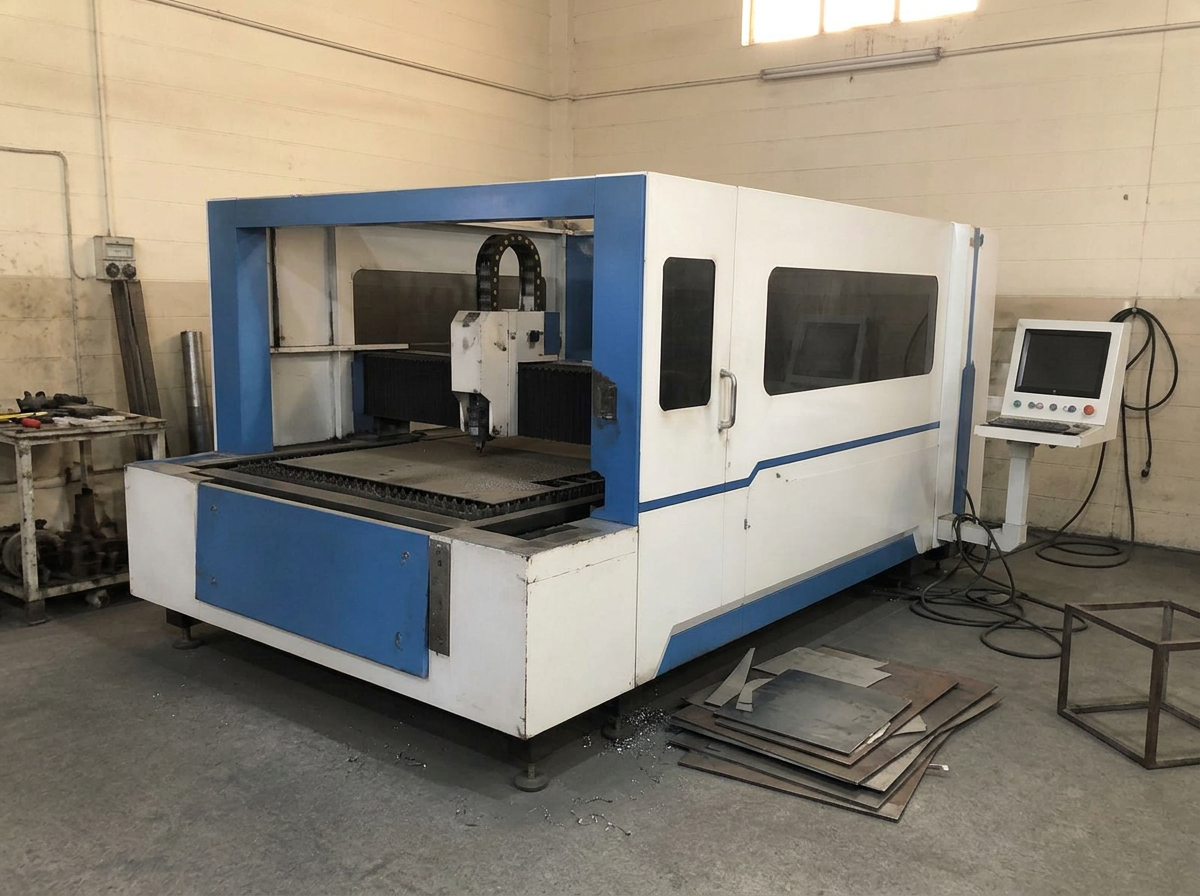

Fiber Laser Cutting Machine — 3000 W (Multitech)02
In-house capability

Fiber Laser Cutting Machine — 3000 W (Multitech)

Multitech 3000 W fiber laser cutting for mild steel, stainless and aluminium sheet — clean, burr-free edges straight off the bed.

  • Clean, burr-free kerf with no secondary finishing
  • Cuts MS, stainless and aluminium sheet up to 16 mm
  • Rotary attachment for round and square tube cutting
Brand: MultitechBed Size: 3000 x 1500 mmAluminium: up to 6 mmMild Steel: up to 16 mm
View details

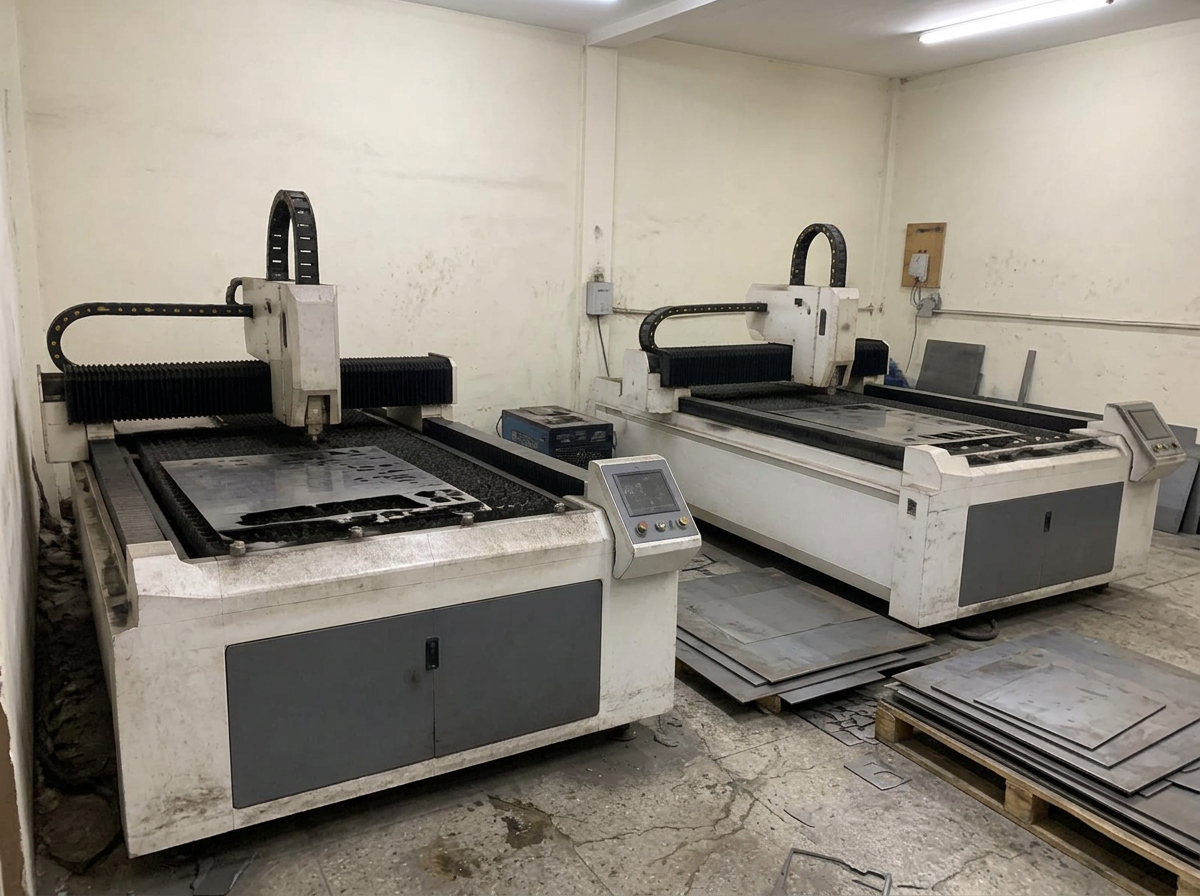

Laser Cutting Machine — 1500W03
In-house capability

Laser Cutting Machine — 1500W

Two 1500 W fiber laser cutters running in parallel for fast, high-volume cutting of thin gauge stainless, MS and aluminium.

  • Two beds running in parallel for faster bulk output
  • Precision cutting of thin gauge letter faces and returns
  • Consistent, repeatable profiles across large roll-outs
Bed Size: 3000 x 1500 mm eachAluminium: Up to 3 mmMild Steel: Up to 6 mmLaser Source: 1500 W fiber (x2 units)
View details

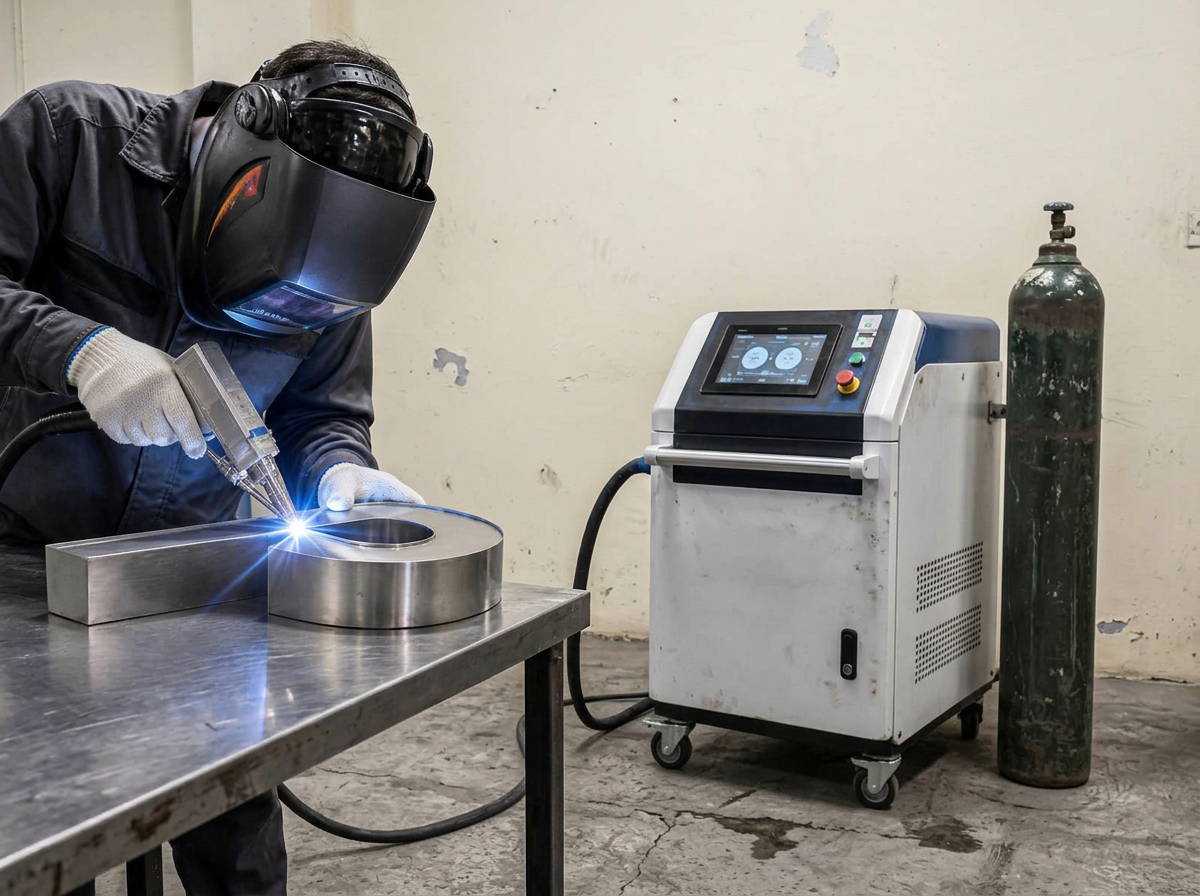

CNC Laser Welding Machine04
In-house capability

CNC Laser Welding Machine

Precision laser welding for stainless and MS letter returns — clean seams, no grinding marks.

  • Mirror-finish seams with minimal grinding
  • Distortion-free welding on thin sheet metal
  • Up to 4x faster than TIG on letter returns
Materials: SS 304/316, MS, aluminiumWeld speed: Up to 6 m/minLaser power: 1500 W fibreSheet thickness: 0.5-4 mm
View details

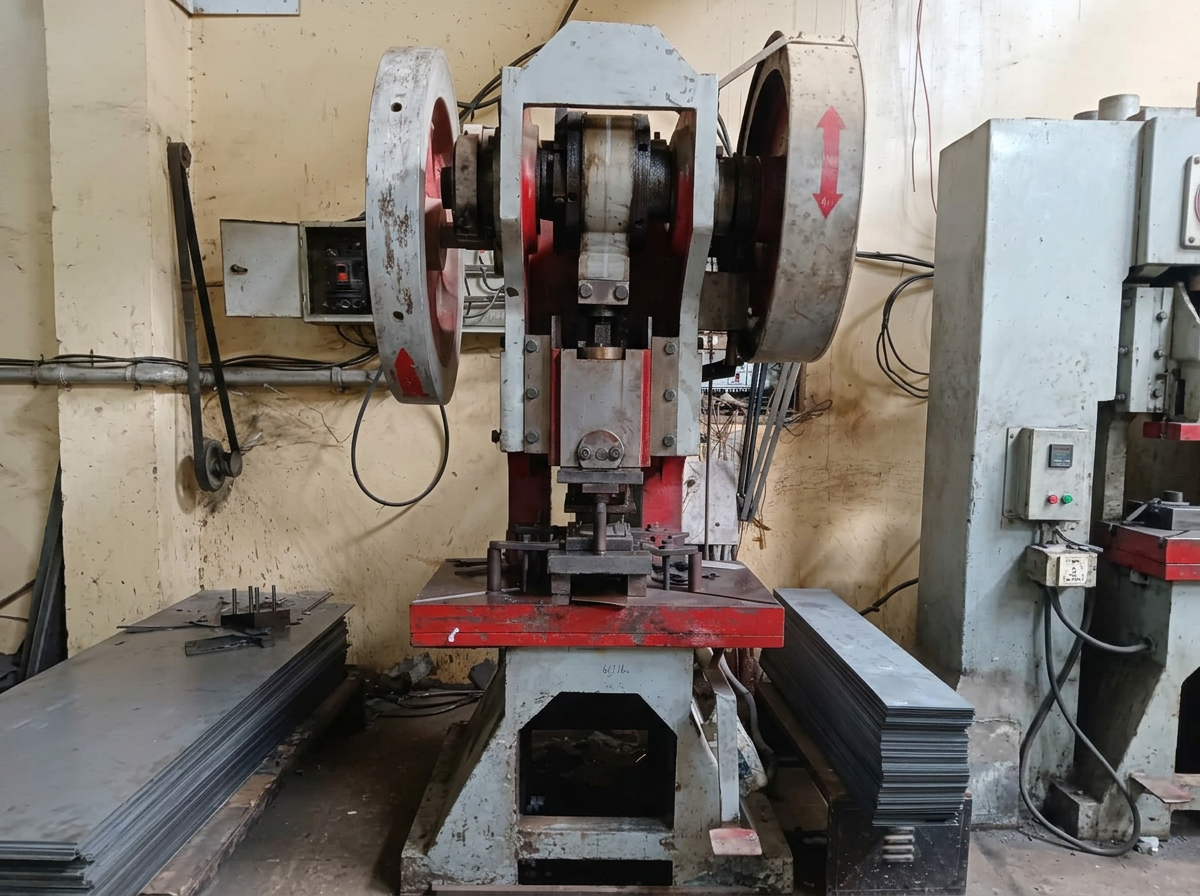

Power Press Machine — 100 Ton05
In-house capability

Power Press Machine — 100 Ton

Mechanical C-frame power press for punching, blanking and forming sheet metal components at production speed.

  • Repeatable punching and blanking to identical dimensions
  • In-house custom die tooling for bespoke profiles
  • High-volume production runs without outsourcing
Type: Mechanical C-frameDrive: Twin flywheelMotor: 7.5 kWStroke: 120 mm
View details

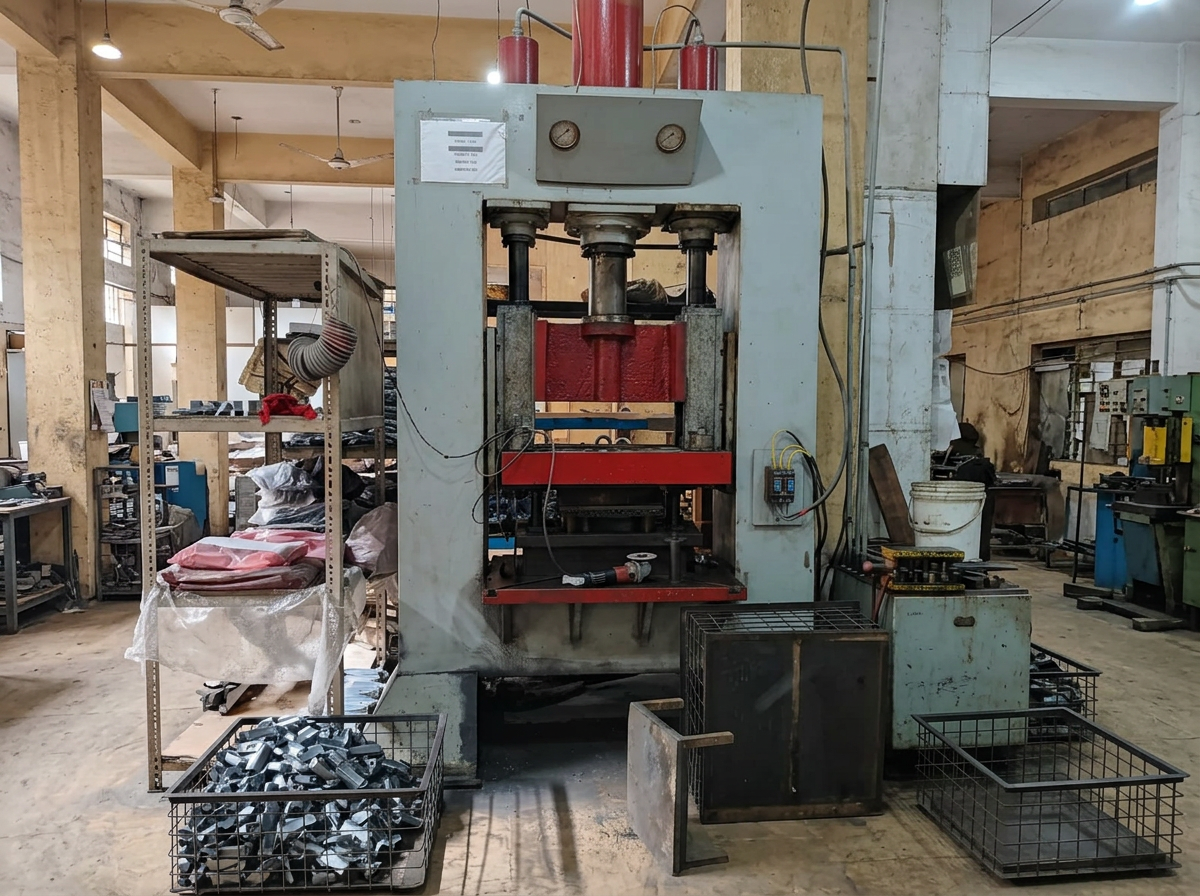

Power Press Machine — 200 Ton06
In-house capability

Power Press Machine — 200 Ton

Heavy 200 ton hydraulic press for deep forming, heavy plate work and large structural signage components.

  • Deep forming of heavy plate without cracking or springback
  • Oversized bolster for large structural dies
  • Engineered pressing for pylon and totem base components
Type: Hydraulic H-frameStroke: 400 mmCapacity: 200 TonRam Speed: Variable, controlled dwell
View details

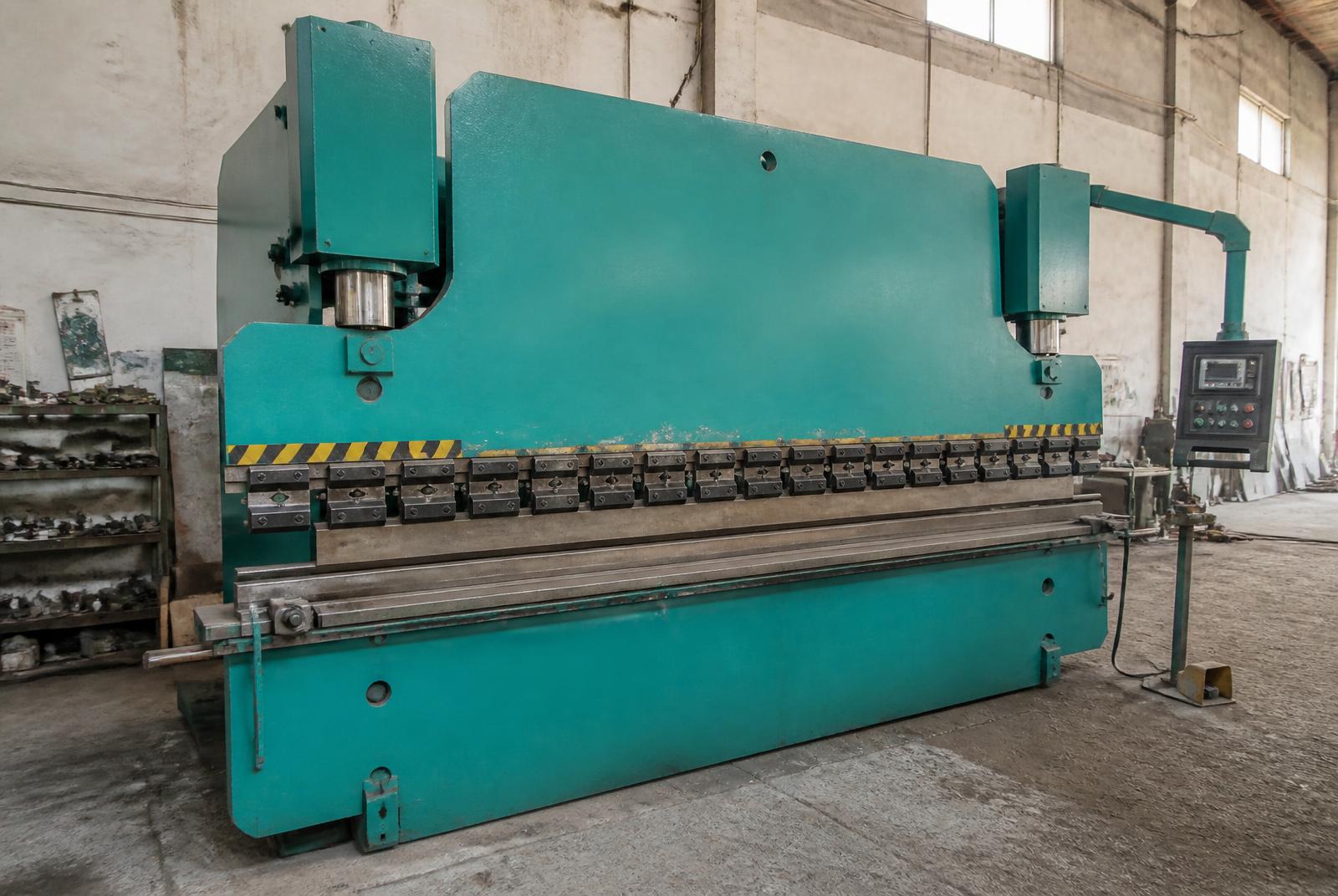

Hydraulic Plate Bending Machine — WC67Y-80/250007
In-house capability

Hydraulic Plate Bending Machine — WC67Y-80/2500

Hydraulic press brake with an 800 kN nominal force and 2500 mm table for bending signage plates, frames and cladding profiles in-house.

  • Repeatable bend angles across long production batches
  • Full 2.5 m table length for large panels and cladding
  • Segmented top dies for short bends and box sections
Type: Hydraulic press brakeModel: WC67Y-80/2500Tooling: Segmented top diesMaterials: MS, stainless, aluminium
View details
CNC Bed Milling Machine — TRYAX B6FC08
In-house capability

CNC Bed Milling Machine — TRYAX B6FC

TRYAX B6FC CNC bed mill for precision machining of dies, jigs, mounting plates and signage hardware.

  • Precision dies and jigs machined to drawing
  • Custom mounting hardware made in-house
  • No dependency on outside machine shops
Type: CNC bed milling machineControl: CNCMaterials: Steel, stainless, aluminiumApplications: Dies, jigs, mounting plates
View details
CNC Tube Bender09
In-house capability

CNC Tube Bender

CNC controlled mandrel tube bender for clean, kink-free bends in round and square tube.

  • Programmable, repeatable bend radii
  • Mandrel support for clean kink-free bends
  • Round and square tube for frames and structures
Type: CNC mandrel tube benderControl: CNC with programmable radiiApplications: Pylon frames, curved structures, railingsBend Quality: Kink-free mandrel bending
View details

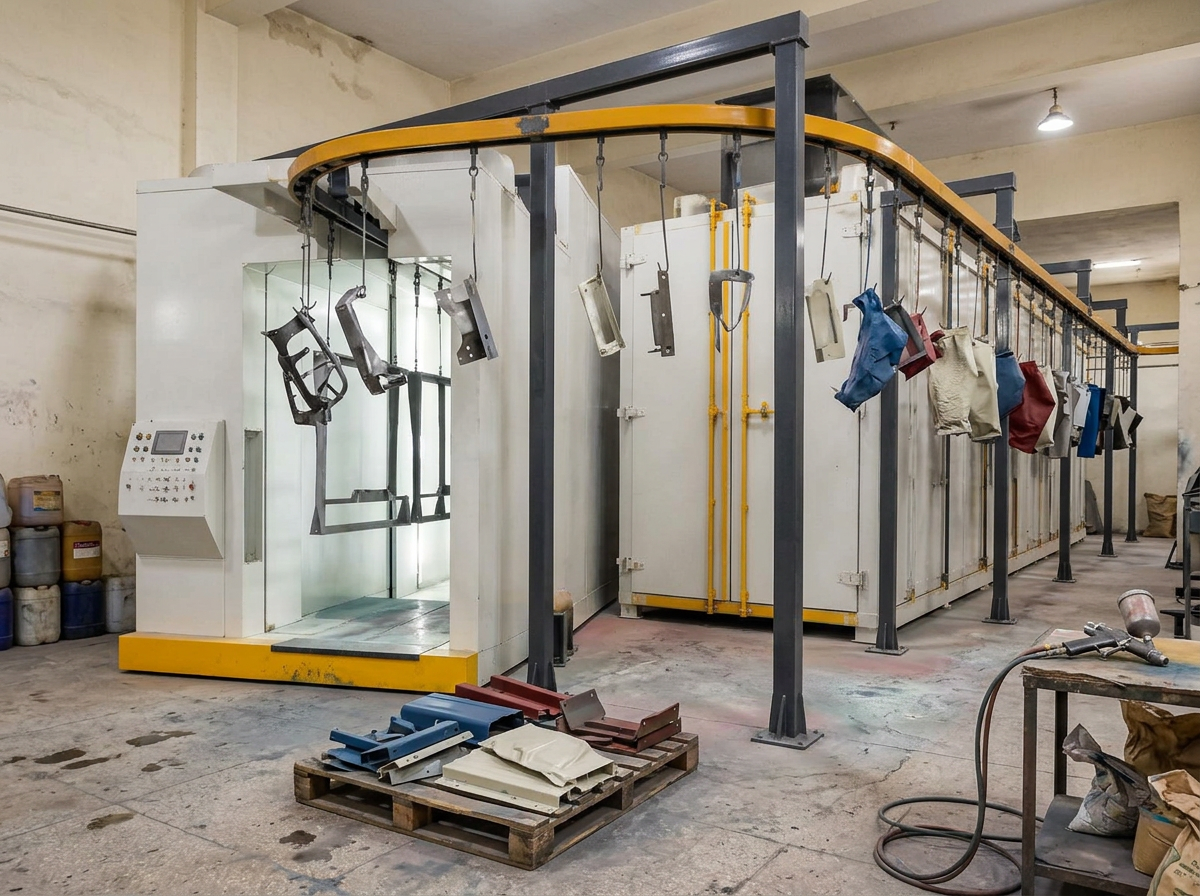

Powder Coating Plant10
In-house capability

Powder Coating Plant

Durable factory finishing for metal signage components.

  • Any RAL shade, matte, gloss or textured
  • Weather-resistant finish for outdoor signage
  • Oven-cured for a hard, chip-resistant surface
Finish: Matte, Gloss, TexturedOven length: 6 m
View details

Have a job for our floor?

Send us your drawings or a reference photo — we'll advise the right process and quote it.
